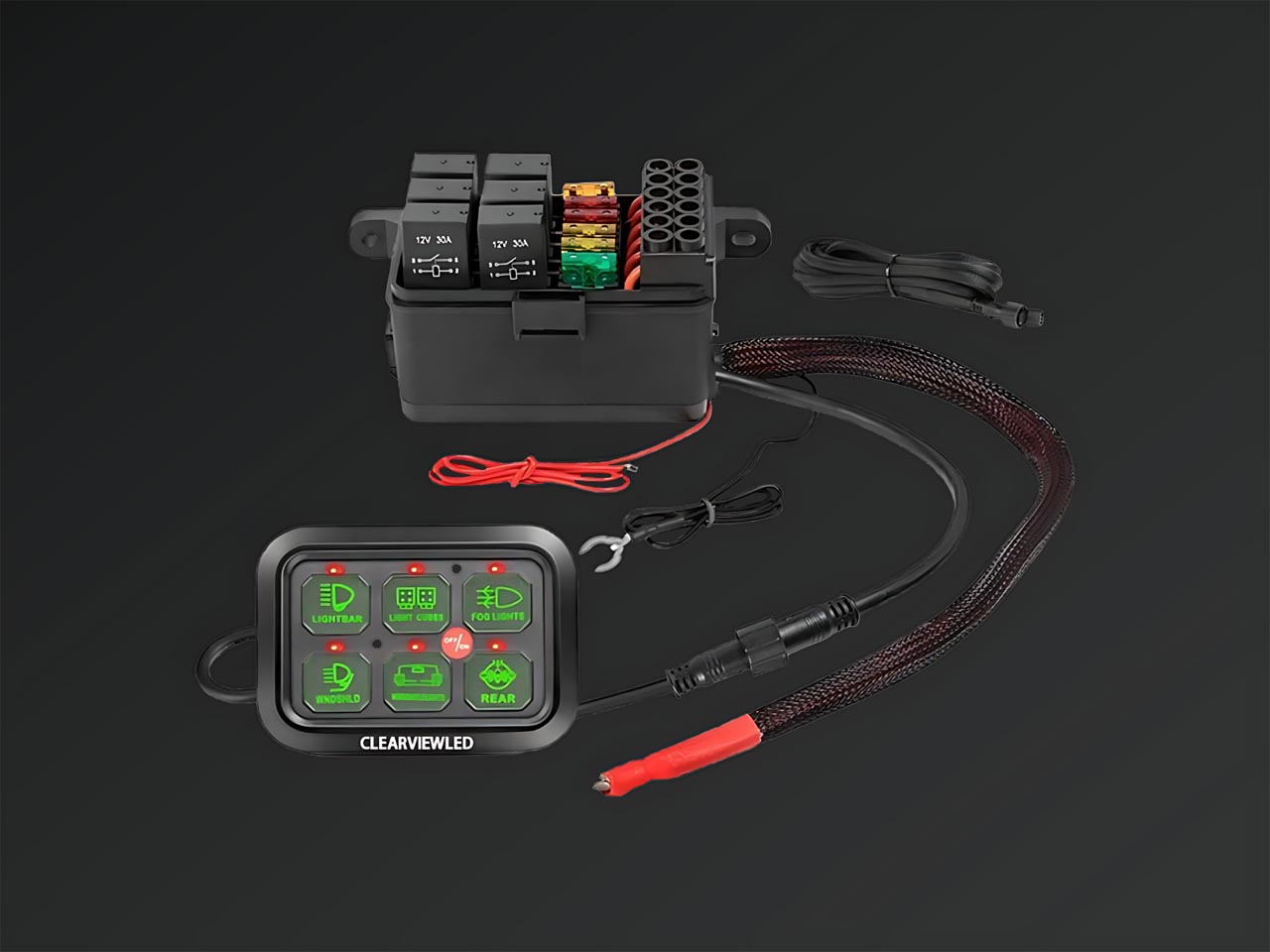

Take full command of your vehicle’s lighting and accessories with the CLEARVIEWLED 6-Gang Switch Panel – the ultimate solution for streamlined control in your 4WD, ute, or touring setup. This compact, low-profile switch panel allows you to operate up to six different lights or devices from a single, easy-to-access hub.
Built for convenience and durability, the CLEARVIEWLED 6-Gang Switch Panel features backlit switches for enhanced night-time visibility and a sleek, professional look that integrates seamlessly into any dash, overhead console, or custom mount.
From driving lights and light bars to camp lights and rock lights, this panel delivers clean, organised control without clutter or hassle.
Compact. Versatile. Controlled.

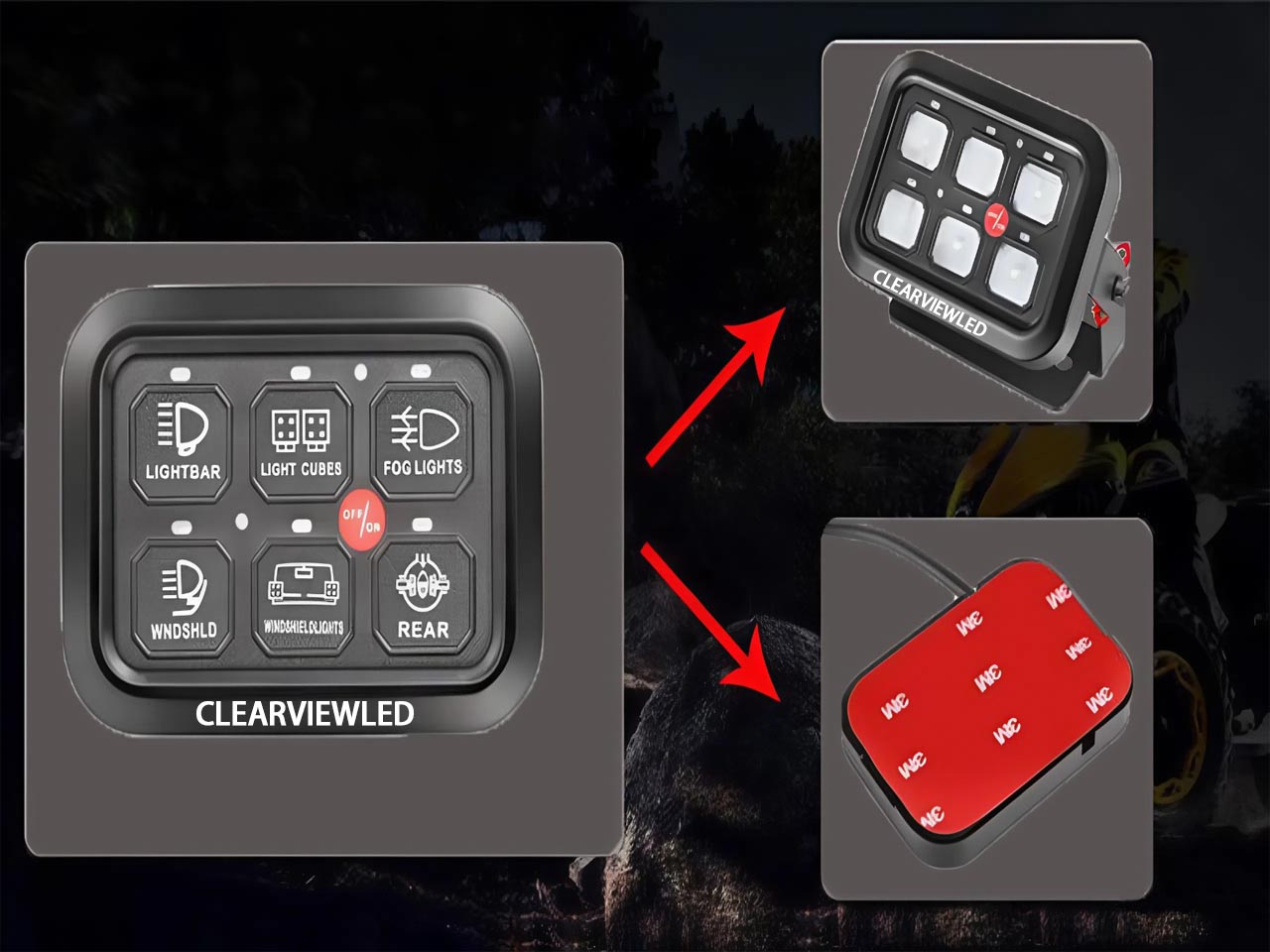

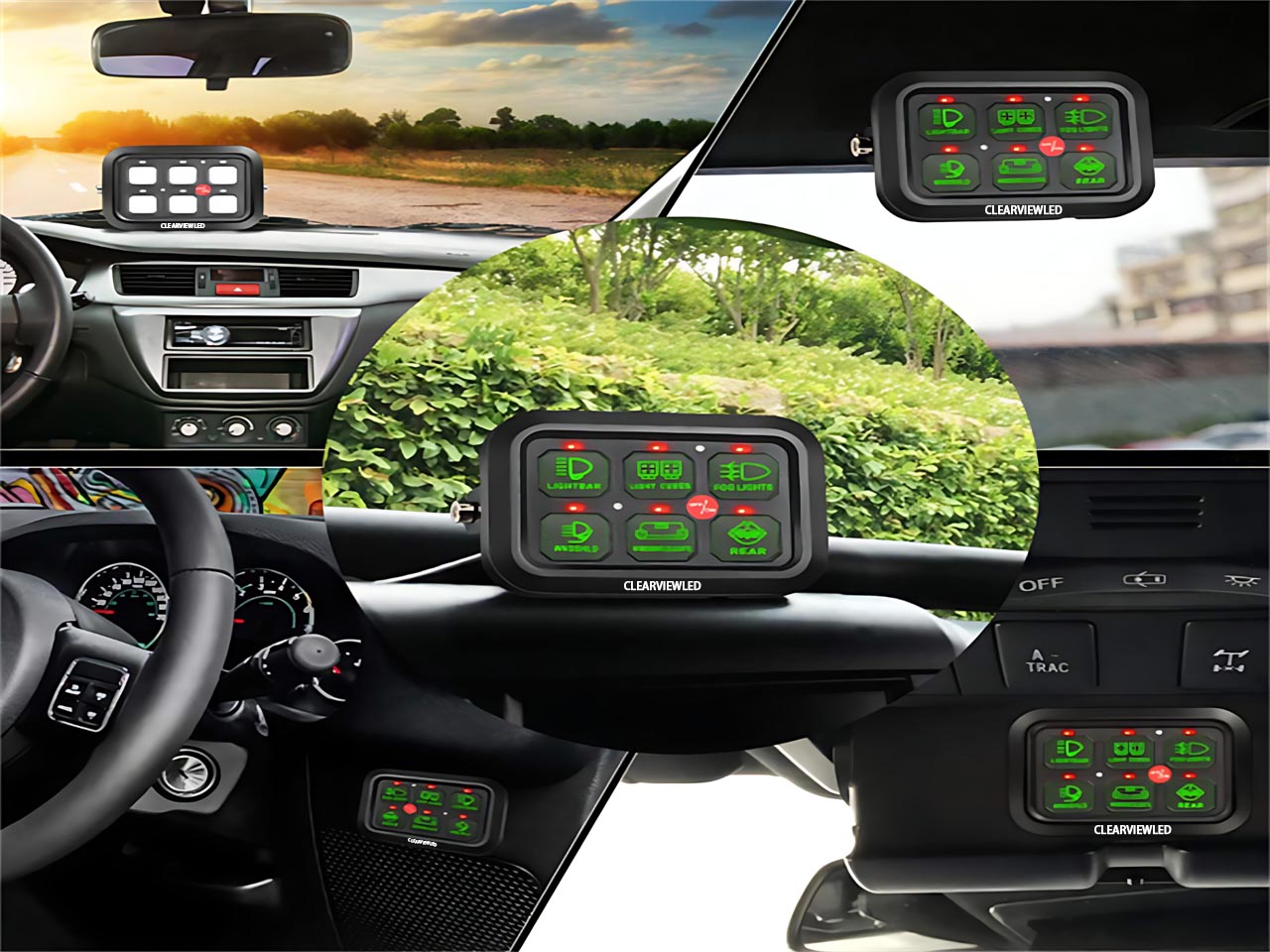

Our 6 gang switch panel is designed for easy installation in any vehicle. Compact and versatile, it can be mounted on your dashboard, console, or overhead, giving you quick and convenient control of your accessories.
Backlit. Sleek. Functional.
All buttons on our switch panel are backlit, ensuring easy visibility and operation day or night. The soft glow adds a sleek look to your setup while making it simple to locate and control each function in low-light conditions.
Custom. Clear. Organised.
Comes with a range of pre-labelled stickers, allowing you to customise each button to suit your specific setup. Easily identify your accessories at a glance and create a clean, organised control panel tailored to your needs.

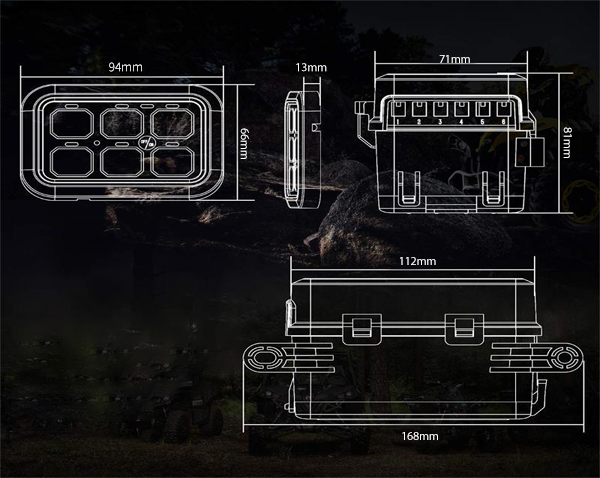

Dimensions
Specifications
| Model | CV-6G-S |
|---|---|
| Voltage | 12V |
| Max total current | 60A |
| Max Power | 720W |
| Number of circuits | 6 |
| Dimensions | 74mm x 19.3mm x 41mm |
| Max current per relay | 30A (equipped with 20A fuse} |
| Switch Panel Dimensions | 95x65x10mm |
| Control Box Dimension | 159x89x83mm |
| Switch Type | Touch Pad On/Off, with back-light |
